415 50D1737141AU04KB0 1508

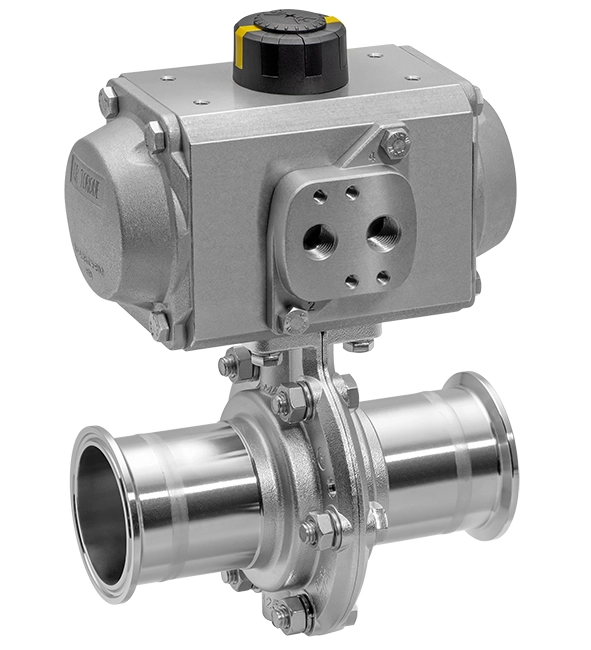

Butterfly valve, pneumatic NC

Item number:		88823594
Description

Type	415	Butterfly valve, pneumatically operated
DN	50	DN 50
Body configuration	D	2/2-way body
Connection type	17	Spigot EN 10357 series A (formerly DIN 11850 series 2)
Body material	37	1.4408, investment casting
Shut-off seal material	14	EPDM
Control function	1	Normally closed (NC)
Actuator version	AU04KB	Actuator, pneumatic, single acting, clockwise rotation, spring closing, ASR0040US14F05 S14S11
Operator particulars	0	Anodized aluminium
Execution type	1508	Ra <= 0.6 µm electropolished internal/external, surface finish data refers to media wetted surfaces
Surface	1508	Ra <= 0.6 µm internal, electropolished, Ra <= 0.6 µm external, electropolished, surface finish data refers to media wetted surfaces

Request a quotation now
To see prices login/register here

Description Features Tender specifications Documents

The GEMÜ 415 soft seated butterfly valve made from stainless steel or brass is pneumatically operated by a space-saving piston actuator. The "Normally Closed", "Normally Open" and "Double Acting" control functions are available. A low-cost rack and pinion actuator can also be fitted. With its rounded and polished disc edges, the butterfly valve is optimized for frequent cycle duties. The surface of the butterfly valve can be further finished.

Suitable for vacuum applications and low temperatures
High-quality butterfly valve made from stainless steel or brass
Available in small nominal sizes
Compact and robust body
Corrosion-resistant and space-saving piston actuator made from plastic or metal
